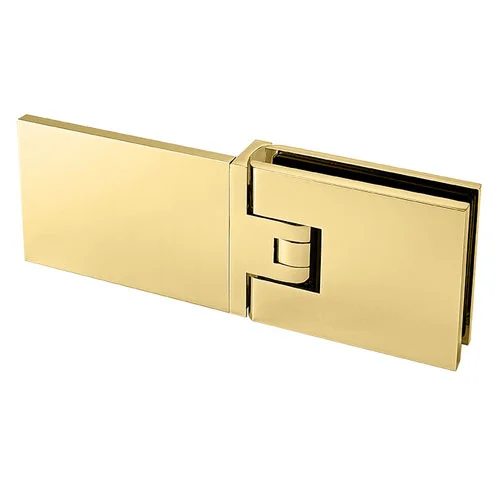

180 Degree Glass to Wall Spring Hinges SD1605

The SD1605 180° Glass to Wall Spring Hinges are designed for secure, smooth, and reliable operation of frameless shower doors.

Made from solid brass, these hinges provide exceptional strength, corrosion resistance, and long-lasting performance. They are compatible with 1/4″ (6mm) and 5/16″ (8mm) thick glass and feature a self-closing mechanism at approximately 30°, helping to improve water control inside the shower enclosure.

Two hinges can support a maximum glass door weight of 35kg, making them suitable for residential and commercial bathroom installations.

Key Features:

• Material: Solid brass for durability and corrosion resistance

• Design: 180° glass-to-wall spring hinge

• Glass Compatibility: Fits 6mm (1/4″) and 8mm (5/16″) glass

• Self-Closing: Closes automatically at about 30°

• Load Capacity: Supports up to 35kg per two hinges

• Applications: Frameless shower doors for homes, hotels, and commercial spaces

Specifications:

• Model: SD1605

• Type: 180° glass-to-wall spring hinge

• Material: Brass

• Fits Glass Thickness: 6mm (1/4″), 8mm (5/16″)

• Self-Closing Angle: Approx. 30°

• Load Capacity: 35kg per two hinges

• Application: Frameless glass shower enclosures

Brass Shower Door Clamps SD16xx Series

Model	Image	Mounting Type	Closing Type	Adjustable	Feature
SD1601A		Glass to wall 90° full plate	Self-closing at about 30°	Yes	With Cover
SD1601L		Glass to wall 90° offset plate	Self-closing at about 30°	Yes	With Cover
SD1602		Glass to Glass 90°	Self-closing at about 30°	Yes	With Cover
SD1603		Glass to Glass 135°	Self-closing at about 30°	Yes	With Cover
SD1604		Glass to Glass 180°	Self-closing at about 30°	Yes	With Cover
SD1605		Glass to wall 180°	Self-closing at about 30°	Yes	With Cover
