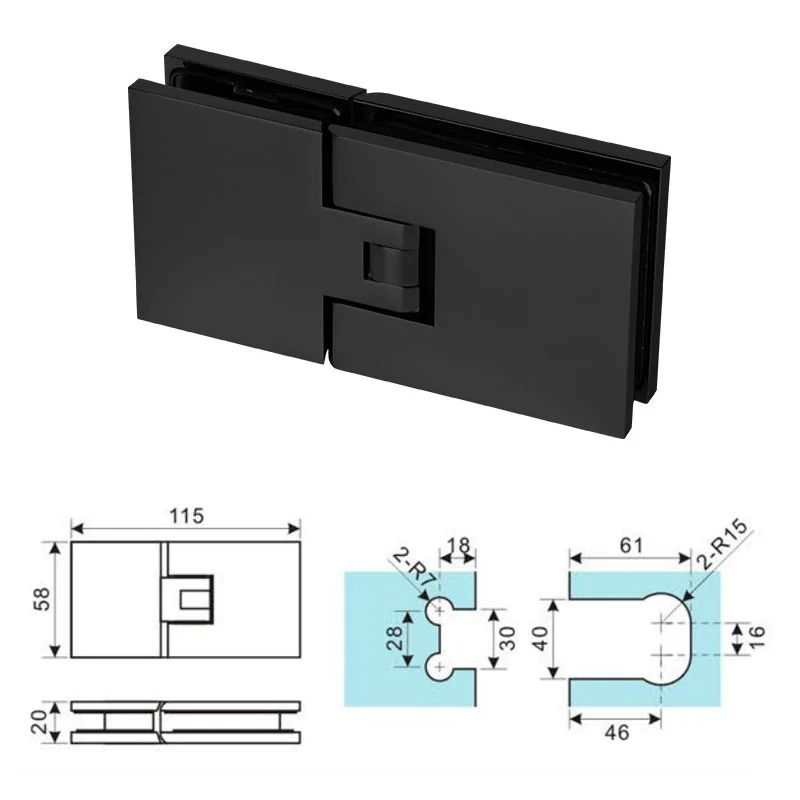

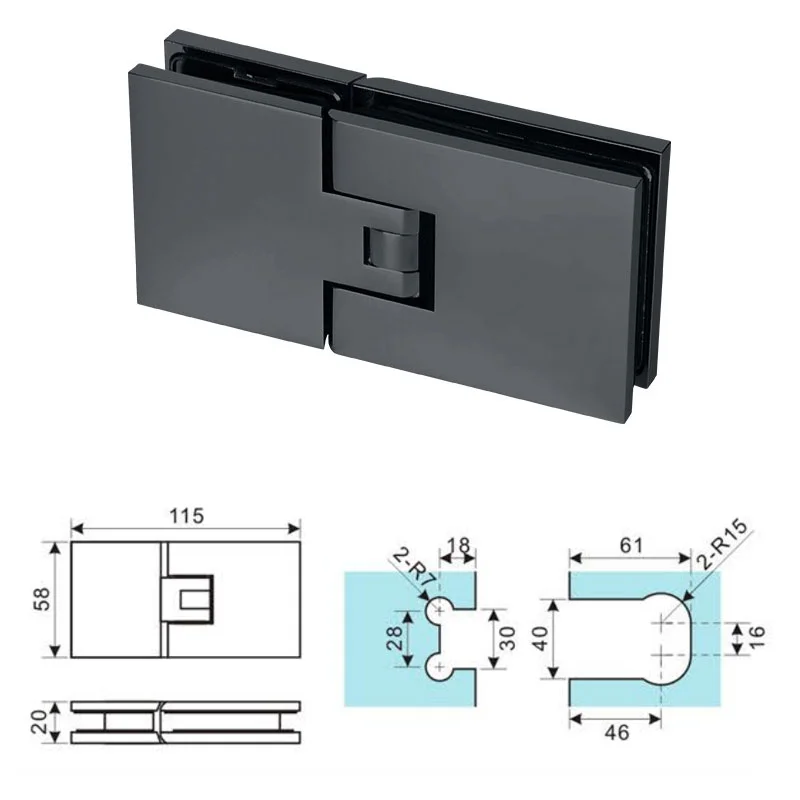

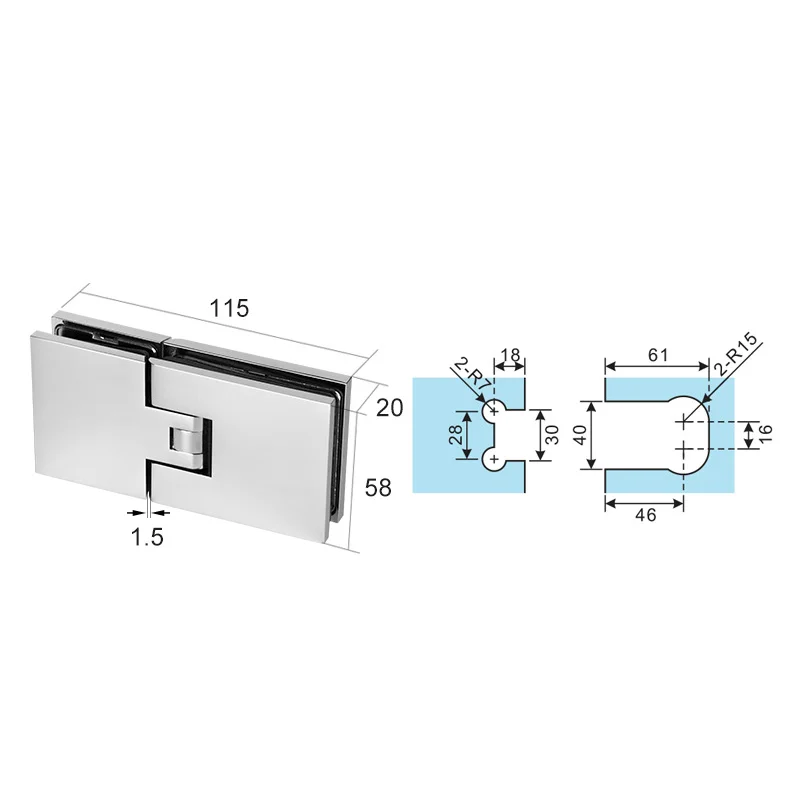

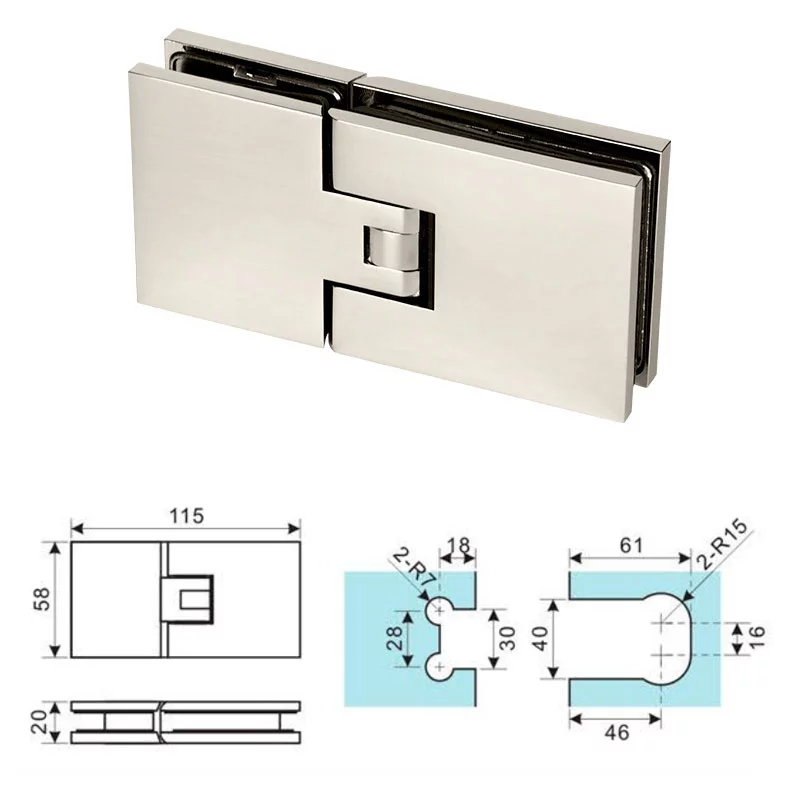

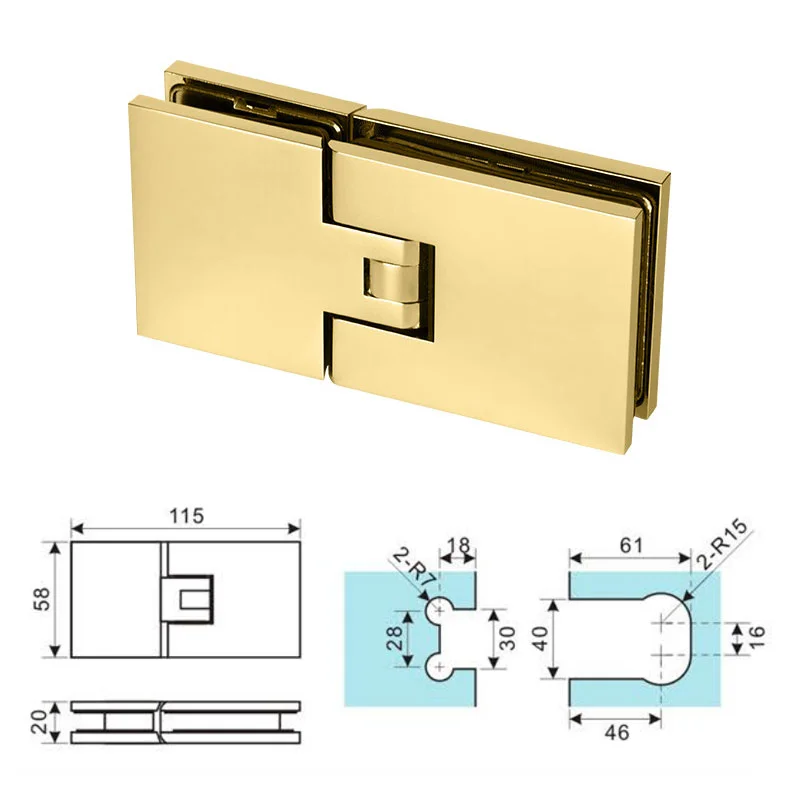

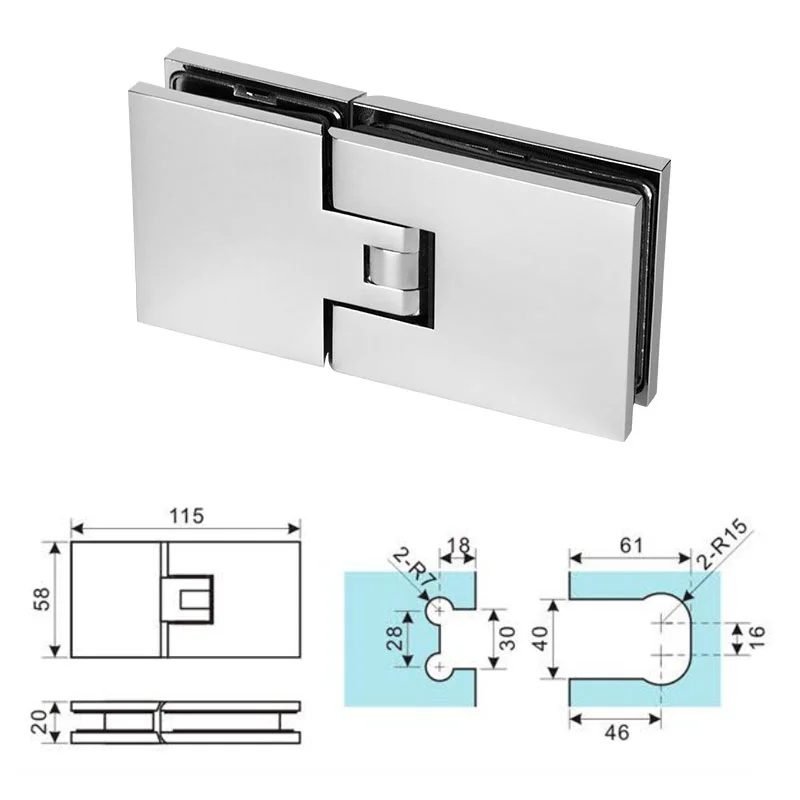

180° Glass to Glass Spring Hinges Brass SD1604

The SD1604 180° Brass Glass to Glass Spring Hinges are designed for durability, smooth operation, and easy maintenance in frameless shower enclosures.

Constructed from solid brass, these glass-to-glass spring hinges fit 6–12mm thick glass and feature a self-closing mechanism at about 30° for improved water retention and safety.

With a maximum load capacity of 35kg per two hinges, they are ideal for light to medium-weight shower doors. The 180° opening range provides flexibility for installations requiring a full swing between aligned glass panels.

Key Features:

• Type: 180° glass-to-glass spring hinge

• Material: Solid brass for corrosion resistance and strength

• Glass Compatibility: Fits 6–12mm thick glass

• Load Capacity: Supports up to 35kg per two hinges

• Self-Closing: Automatically closes at about 30°

• Opening Range: 180° for flexible installation options

• Applications: Frameless glass shower doors in residential and commercial settings

Specifications:

• Model: SD1604

• Type: Glass-to-glass spring hinge, 180°

• Material: Brass

• Fits Glass Thickness: 6–12mm

• Load Capacity: 35kg / 2pcs

• Self-Closing Angle: ~30°

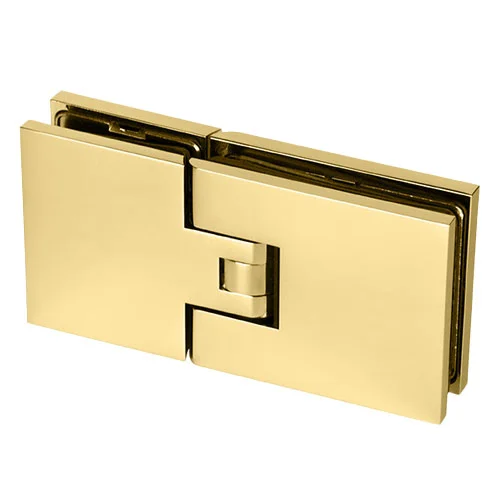

• Finish Options: Chrome Polished, Brushed Nickel, Polished Gold, Matte Black, Gun Metal (optional)

Brass Shower Door Clamps SD16xx Series

Model	Image	Mounting Type	Closing Type	Adjustable	Feature

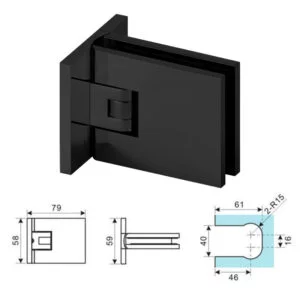

SD1601A		Glass to wall 90° full plate	Self-closing at about 30°	Yes	With Cover

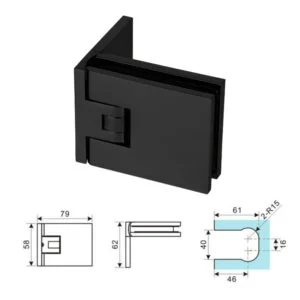

SD1601L		Glass to wall 90° offset plate	Self-closing at about 30°	Yes	With Cover

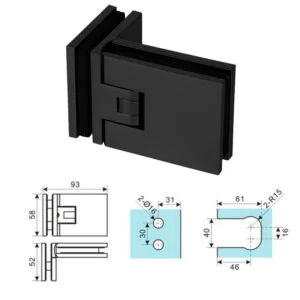

SD1602		Glass to Glass 90°	Self-closing at about 30°	Yes	With Cover

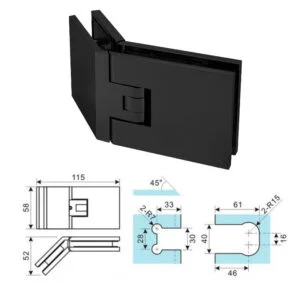

SD1603		Glass to Glass 135°	Self-closing at about 30°	Yes	With Cover
SD1604		Glass to Glass 180°	Self-closing at about 30°	Yes	With Cover

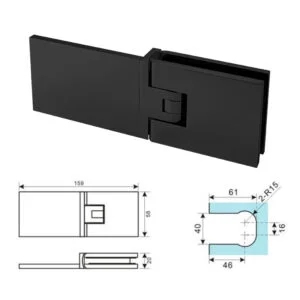

SD1605		Glass to wall 180°	Self-closing at about 30°	Yes	With Cover
