SDC140B Square Brass 90° Glass to Wall Round Hole Clip

The SDC140B Square Brass 90° Glass to Wall Round Hole Clip is a high-quality and compact clamp designed for frameless shower enclosures and glass partitions.

Made from solid brass, it provides excellent corrosion resistance and strength, ensuring long-term stability in wet and humid environments. The 90° glass-to-wall configuration allows secure mounting of glass panels to wall surfaces, while the round hole design ensures precise installation and easy alignment.

With a square profile (45×45mm) and slim 30mm body height, this clamp fits 6–12mm thick glass and supports up to 35kg per two clamps. Its simple, modern form makes it ideal for minimalist bathroom designs and commercial applications.

Key Features:

• Type: 90° brass square glass-to-wall clamp (round hole type)

• Material: Solid brass for strength and rust resistance

• Glass Compatibility: Fits 6–12mm thick glass

• Load Capacity: Supports up to 35kg per two clamps

• Design: Square compact 45×45mm, round hole structure for easy mounting

• Applications: Frameless shower enclosures, partitions, and glass doors

Specifications:

• Model: SDC140B

• Type: Glass-to-wall 90° square clamp

• Material: Brass

• Shape: Square

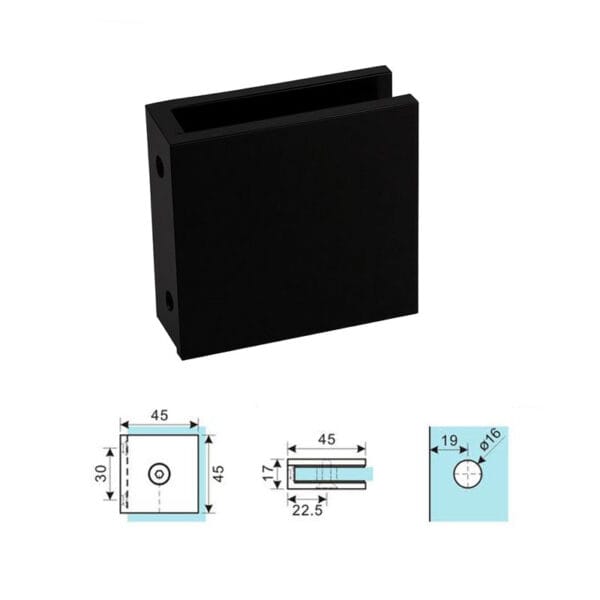

• Size: 45 × 45mm

• Glass Thickness: 6–12mm

• Max Door Weight: 35kg / 2pcs

• Glass Cut-Out: Round hole (Ø16mm, spacing 19mm)

• Finish Options: Chrome Polished, Polished Gold, Brushed Nickel, Gun Metal, Matte Black

Brass Glass Shower Door Clamps SDC Series

Model	Image	Type	Angle	Shape	Size	Feature
SDC140B		Glass to Wall	90°	Square	45×45mm	Round Hole, Compact
SDC140C		Glass to Wall	180°	Square	45×92mm	Long Clamp
SDC141		Glass to Wall	90°	Square	45×45mm	Standard Hole
SDC142		Glass to Glass	90°	Square	45×45mm	Corner Clamp
SDC143		Glass to Glass	135°	Square	45×45mm	Angled Connection
SDC144		Glass to Glass	180°	Square	45×92mm	Inline Connection
