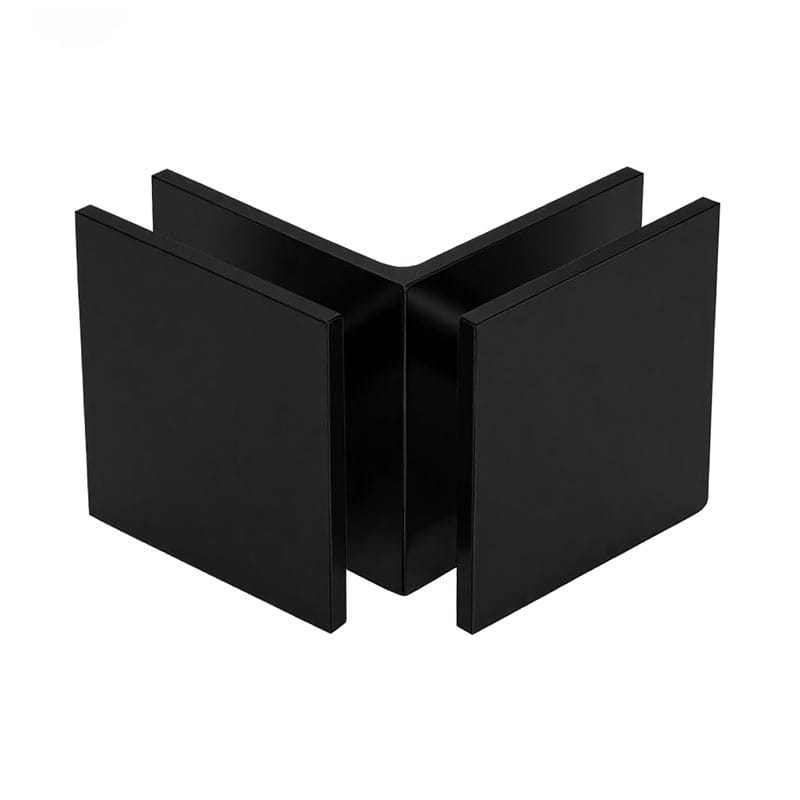

SDC142 Square Brass 90° Glass to Glass Clamp Clip

The SDC142 Square Brass 90° Glass to Glass Clamp Clip is a durable and stylish connector for frameless glass shower doors and partitions.

Made from solid brass, this clamp provides excellent strength and corrosion resistance, ideal for humid bathroom environments. The 90° glass-to-glass configuration allows for a precise right-angle connection between two glass panels, commonly used in shower enclosures, cubicles, and glass corners.

With a compact 45×45mm square design, this model offers a modern, minimalist look while maintaining high functionality. Designed for 6–12mm glass thickness, it can support up to 35kg per two clamps. The round hole cut-out ensures a secure and easy installation.

Key Features:

• Type: 90° brass square glass-to-glass clamp

• Material: Solid brass for strength and rust resistance

• Glass Compatibility: Fits 6–12mm thick glass

• Load Capacity: Supports up to 35kg per two clamps

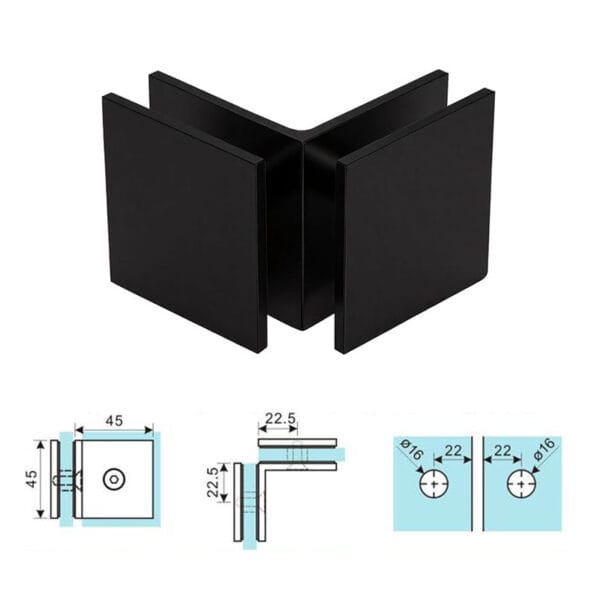

• Design: Square shape (45×45mm) with precision round cut-out

• Applications: Perfect for frameless glass shower enclosures, corner joints, and glass partitions

Specifications:

• Model: SDC142

• Type: Glass-to-glass 90° square clamp

• Material: Brass

• Shape: Square

• Size: 45 × 45mm

• Fits Glass Thickness: 6–12mm

• Max Door Weight: 35kg / 2pcs

• Glass Cut-Out: Round hole (Ø16–22mm spacing)

• Finish Options: Chrome Polished, Polished Gold, Brushed Nickel, Gun Metal, Matte Black

Brass Glass Shower Door Clamps SDC Series

Model	Image	Type	Angle	Shape	Size	Feature
SDC140B		Glass to Wall	90°	Square	45×45mm	Round Hole, Compact
SDC140C		Glass to Wall	180°	Square	45×92mm	Long Clamp
SDC141		Glass to Wall	90°	Square	45×45mm	Standard Hole
SDC142		Glass to Glass	90°	Square	45×45mm	Corner Clamp
SDC143		Glass to Glass	135°	Square	45×45mm	Angled Connection
SDC144		Glass to Glass	180°	Square	45×92mm	Inline Connection
