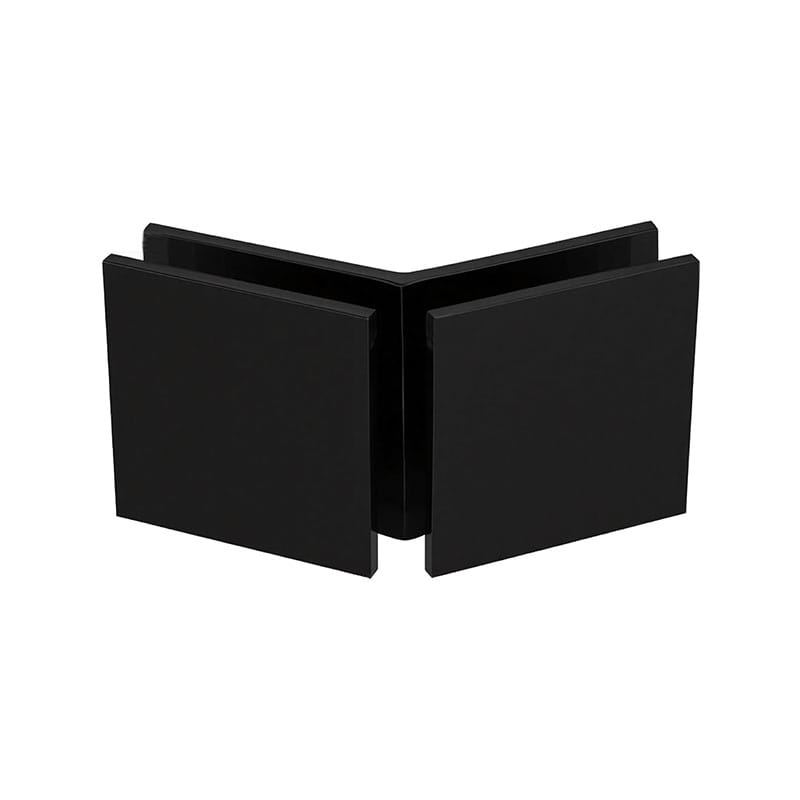

SDC143 Square Brass 135° Glass to Glass Bracket Clip

The SDC143 Square Brass 135° Glass to Glass Bracket Clip is a precision-engineered fitting designed for frameless shower enclosures that require angled glass connections.

Constructed from solid brass, this clamp ensures excellent strength, corrosion resistance, and long-term durability. The 135° glass-to-glass configuration allows for secure angled joints between fixed glass panels, commonly used in neo-angle or corner shower enclosures.

With its square profile (45×45mm), the SDC143 delivers a clean, modern look, ideal for minimalist bathroom designs. Designed to fit 6–12mm thick glass, it supports up to 35kg per two clamps and features a round hole cut-out for precise installation and a firm grip.

Key Features:

• Type: 135° brass square glass-to-glass shower bracket

• Material: Solid brass for strength and corrosion resistance

• Design: Square shape, 135° angle for angled shower connections

• Glass Compatibility: Fits 6–12mm thick glass

• Load Capacity: Supports up to 35kg per two clamps

• Applications: Frameless glass shower enclosures, neo-angle corners, and glass partitions

Specifications:

• Model: SDC143

• Type: Glass-to-glass 135° square clamp

• Material: Brass

• Shape: Square

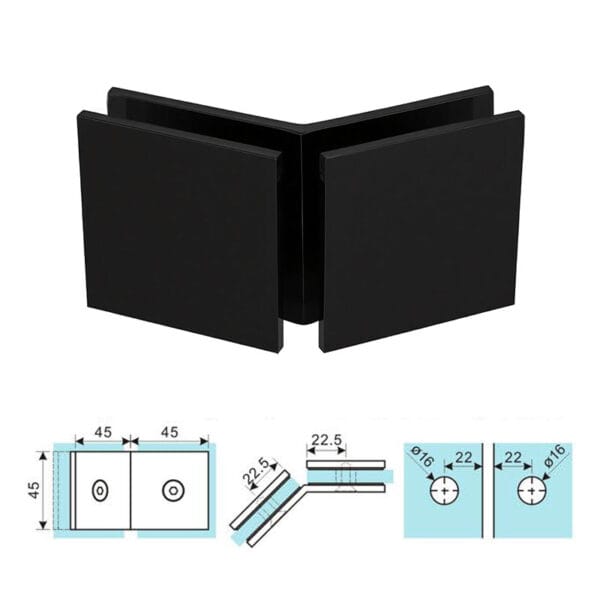

• Size: 45 × 45mm

• Fits Glass Thickness: 6–12mm

• Max Door Weight: 35kg / 2pcs

• Glass Cut-Out: Round hole

• Finish Options: Chrome Polished, Polished Gold, Brushed Nickel, Gun Metal, Matte Black

Brass Glass Shower Door Clamps SDC Series

Model	Image	Type	Angle	Shape	Size	Feature
SDC140B		Glass to Wall	90°	Square	45×45mm	Round Hole, Compact
SDC140C		Glass to Wall	180°	Square	45×92mm	Long Clamp
SDC141		Glass to Wall	90°	Square	45×45mm	Standard Hole
SDC142		Glass to Glass	90°	Square	45×45mm	Corner Clamp
SDC143		Glass to Glass	135°	Square	45×45mm	Angled Connection
SDC144		Glass to Glass	180°	Square	45×92mm	Inline Connection
